Microsoft Bot Builder .Net Using FormFlow - Part 3

In this part we will test our live azure service on Microsoft Bot Emulator Channel.

Let first make sure our azure service is up and running.

Live Bot Url Testing

Make sure azure live url ( on browsing returns result similar to below screen shot.

Make sure live azure service returns success on bot page

Connecting to Microsoft Bot Emulator Channel

Lets launch emulator and enter the below fields

  • Bot Url
  • Microsoft App Id
  • Microsoft App Password

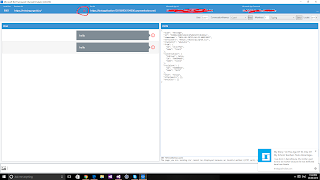

Once you enter the above field and enter any message you will see something like below screen shot.

The reason for failing of message is that live azure could not connect back to Emulator url.
In order to make our bot url available to azure live url we need to work with NGROK.


Ngor is small utility which makes local port number available to outside world.
you can download the ngork from the following url (

Once downloaded the ngrok run the following command through command prompt
ngrok http -host-header=rewrite 9001

Once you run the command you will see the below output

The forwarding url is the url availble to outside world, which is mapped to our local port 9001
Copy that url and paste in Microsoft Emulator Url

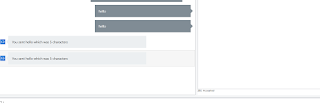

Now you type the message you will see the output

Things to remember

  • Bot url must have /api/messages appended
  • Emulator url can have http or https
  • Bot url can have http or https
In next part we will modify our bot to use real world example of registering product.
